Business Areas
Reliability Competency
1) Application Area
- Semiconductor Test Boards (Front / Back-End)
- Automotive Electronics (ADAS, EV Power Modules, ECU)
- High-speed Interconnect Cables & Connectors
2) Analysis Capabilities
- TDR, T/T, Propagation Delay, Impedance miss matched Area
- Open / Short / Leakage Current(10pA)
Comparison Items
Measurement method
Accuracy/Reliability
Check up Item
Work efficiency
Speed/Productivity
Competing Equipment
DVM, TDR, ETC Manual work
Manual/High variable
Impedance Based
Report manual
DVM(16.7H) / TDR(11.1H)
Our Solution (The Jinsol)
RF-based automation, Multi-channel quantitative test
S-parameter Delay, Overshoot quantitative test
Measure 5 or more types of parameters comprehensively + Signal Integrity Analysis
GUI-based automatic control + PDF & Excel Report
Same condition 0.14H, more than 80 times faster
Merit
Missed Inspection Prevention, Secure Reliability
Ensuring signal analysis reliability
Ensuring high-speed signal integrity
Reducing reliance on operators, Efficiency improvement
Faster inspection, high-volume processing
← Swipe left or right to check the table. →
Electrical Reliability Analyzer
RF Test Equipment
[S-para / Delay / Transition Measurement]
- Detection of connector pin defects
- Detection of connector-to-board connection failures
- Detection of board via & trace connection defects
- Multi-channel simultaneous automatic measurement using proprietary equipment
DC Test Equipment
[Open / Short / Leakage Measurement]
- Detection of Signal & Power Pin connection defects
- Detection of connector-to-board connection failures
- Detection of board-to-electrical-component connection defects
Applicable Product Categories
Test Interface Board
01
Cantilever Type
02
Vertical POGO
03
Load Board
04
HIFIX Board
Interconnection Parts
05
Hi-speed Cable
06
Interposer
07
Package Board

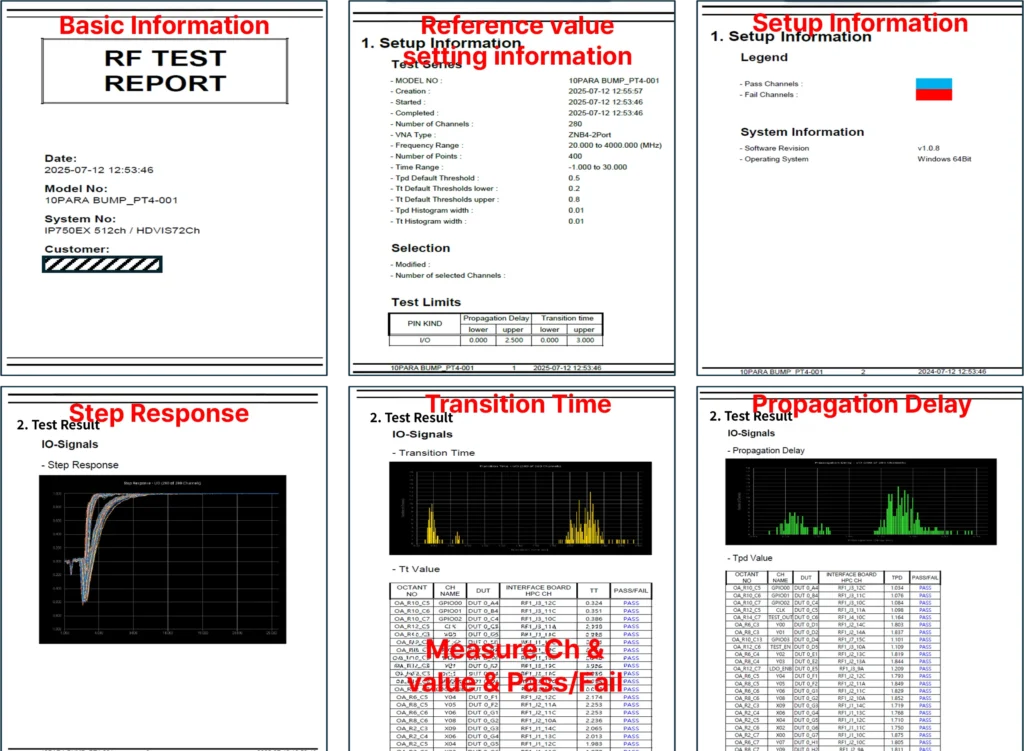

Reliability Test Report
